VCF Upload

Upload VCF, CSV, and TSV files to AIVA for interactive analysis. You can upload from your local machine or import directly from cloud storage.

Supported file formats

Format Extensions Description
VCF .vcf, .vcf.gz Variant Call Format, the standard for variant data from sequencing pipelines. Both uncompressed and gzip-compressed files are supported.
CSV .csv Comma-separated values. The first row must contain column headers.
TSV .tsv, .txt Tab-separated values. The first row must contain column headers.

Column headers required

CSV and TSV files must include a header row as the first line. AIVA uses these headers as column names in the table view. Files without headers will produce incorrect results.

Have FASTQ files?

If you need to run variant calling from raw sequencing reads, see Secondary Analysis instead.

Local upload

Step 1: Open the upload dialog

Navigate to the Samples tab and click the Upload button on the top right. The upload dialog opens with two tabs: select the VCF / CSV / TSV tab.

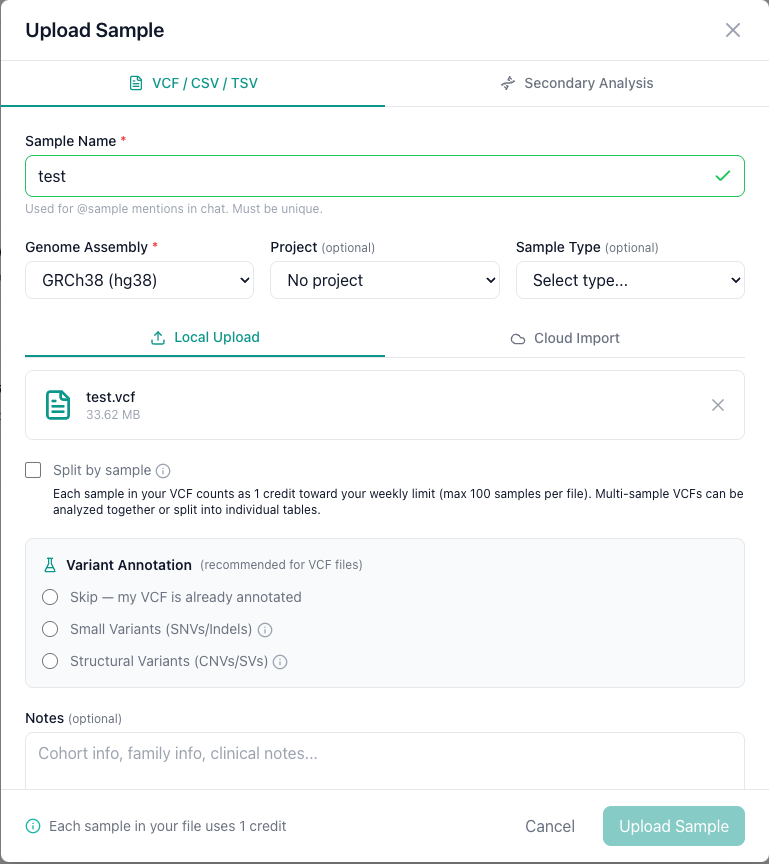

The VCF upload dialog showing sample name, genome assembly, project, file selection, and annotation options

Step 2: Select your file

Drag your file onto the upload zone, or click to browse your file system.

Step 3: Configure upload options

Sample name

Provide a human-readable name for the sample. This name is used for @samples: mentions in AIVA Chat. A descriptive name (e.g., "Patient_042_WES" or "BRCA_panel_run_7") makes it easier to identify samples later.

Genome assembly

Select the reference genome build your file was aligned to. Currently GRCh38 (hg38) is supported for variant annotation.

Project assignment

Optionally assign the sample to an existing project for team collaboration. You can also assign samples to projects after upload.

Sample type

Optionally tag the sample type for organizational purposes.

Split by sample (multi-sample VCF)

For multi-sample VCF files, check Split by sample to create a separate table for each sample (max 100 samples per file). Splitting makes it easier to process variants for individual samples (faster query execution) compared to analyzing all samples together in a single large table. Leave unchecked to keep all samples together in a single table.

Credit usage

Credits are charged per sample in the file regardless of whether you split or not. WES samples cost 2 credits and WGS samples cost 3 credits.

Annotation options (VCF only)

For VCF files, you can choose how annotation is handled:

  • None (bring your own): If your VCF is already annotated from your own pipeline (e.g., VEP, SnpEff, or a custom workflow), click "Skip". AIVA preserves all existing columns and INFO fields exactly as they are in your file.

  • Small Variant Annotation: Adds consequence predictions, gene/transcript info, allele frequencies, prediction scores, and clinical significance.

  • Structural Variant Annotation: Annotates structural variants (CNVs, inversions, translocations) with clinical and functional context.

Your annotations are never overwritten

All columns added by AIVA's annotation are prefixed with aiva_csq_ (e.g., aiva_csq_gene_symbol, aiva_csq_consequence). If your VCF already contains annotations, they are preserved and you can use both side by side in the table view and AIVA Chat.

Annotation adds processing time

Annotation enriches your data with clinically relevant information but increases processing time. For a whole-exome VCF with ~50,000 variants, Small Variant Annotation typically adds a few minutes. Whole-genome files with millions of variants may take longer. You cannot annotate samples from the chat interface.

Step 4: Submit

Click Upload Sample to begin. The file is transferred to the server and a background job is created to process it.

Cloud URL import

Instead of downloading a file to your local machine and re-uploading it, you can paste a cloud storage URL and AIVA handles the download and processing server-side.

Supported URL schemes

Scheme Service Example
gs:// Google Cloud Storage gs://my-bucket/samples/patient-001.vcf.gz
s3:// Amazon S3 s3://lab-data/exome/sample-42.vcf
az:// Azure Blob Storage az://container/path/to/variants.vcf
https:// Public HTTPS URL https://example.com/data/variants.csv

How to import

  1. Navigate to the Samples section.
  2. Click Upload or open the upload dialog.
  3. Select the Cloud URL import option.
  4. Paste the full URL of the file you want to import.
  5. (Optional) Enable Small Variant Annotation or Structural Variant Annotation if the file is a VCF.
  6. Click Submit.

File accessibility

Files must be publicly accessible

AIVA downloads the file from the URL you provide. The file must be publicly readable so that AIVA's server can access it. Private or authenticated URLs will fail with a download error in the Job Manager.

Processing pipeline

Once you submit an upload (local or cloud), AIVA handles everything in the background:

graph LR
    A[Upload / Download] --> B{Annotation?}
    B -->|Yes| C[Annotate]
    B -->|No| D[Parse]
    C --> D
    D --> E[Complete]
  1. File transfer: Your file is uploaded to the server or downloaded from the cloud URL.
  2. Annotation (if selected): Small Variant Annotation and/or Structural Variant Annotation processes your variants. New columns are appended to the data with annotation results.
  3. Parsing: The file is parsed and loaded into the database using optimized bulk operations.
  4. Completion: The sample appears in your sample list and is ready to open in the table view.

You can monitor each stage in real time using the Job Manager.

File size and credit limits

Each file upload consumes credits per sample: 2 credits for WES or 3 credits for WGS. Credits and file size limits vary by tier:

Tier Credits per Week Max File Size
Free 0 (no uploads) 250 MB
Trial 1 500 MB
Plus 3 750 MB
Pro 10 1 GB
Enterprise Unlimited Unlimited

Credits reset every Sunday.

For full plan details, see Credit system and Storage slots.

Tips

  • Use compressed files when possible: Uploading .vcf.gz files reduces transfer time and storage compared to uncompressed .vcf files.
  • Verify cloud URLs before submitting: Paste the URL in a browser or use curl to confirm the file is accessible before submitting to AIVA.
  • Check job status: If an upload or cloud import seems stuck, check the Job Manager for error messages.

Troubleshooting

My upload failed immediately. What went wrong?

Check the error message in the Job Manager. Common causes include:

  • Unsupported file type: Only .vcf, .vcf.gz, .csv, .tsv, and .txt extensions are accepted.
  • Empty file: The file must contain data beyond the header row.
  • Upload limit reached: Your subscription tier may restrict the number of active samples. See Subscription Tiers.
My VCF file was rejected as malformed.

VCF files must include a valid header section. Verify that your file contains the #CHROM header line with the required columns (CHROM, POS, ID, REF, ALT, QUAL, FILTER, INFO). Files produced by standard variant callers (GATK, DeepVariant, bcftools) are fully compatible.

My CSV columns are not parsed correctly.

Ensure your file uses commas as delimiters and that the first row contains headers. If your data uses tabs, rename the file with a .tsv extension. If your data uses semicolons or other delimiters, convert it to standard CSV format before uploading.

Can I upload multiple files at once?

Currently, AIVA processes one file upload at a time. You can submit multiple uploads in sequence, and each will be queued and processed independently. Monitor all active jobs in the Job Manager.

My cloud import failed with a download error.

The cloud URL may be inaccessible due to expired credentials, incorrect permissions, or network issues. Verify that the URL is valid, the resource exists, and your credentials (if required) are current.
